Zebra Technologies ZT22042-T01000FZ Printer

Product Description

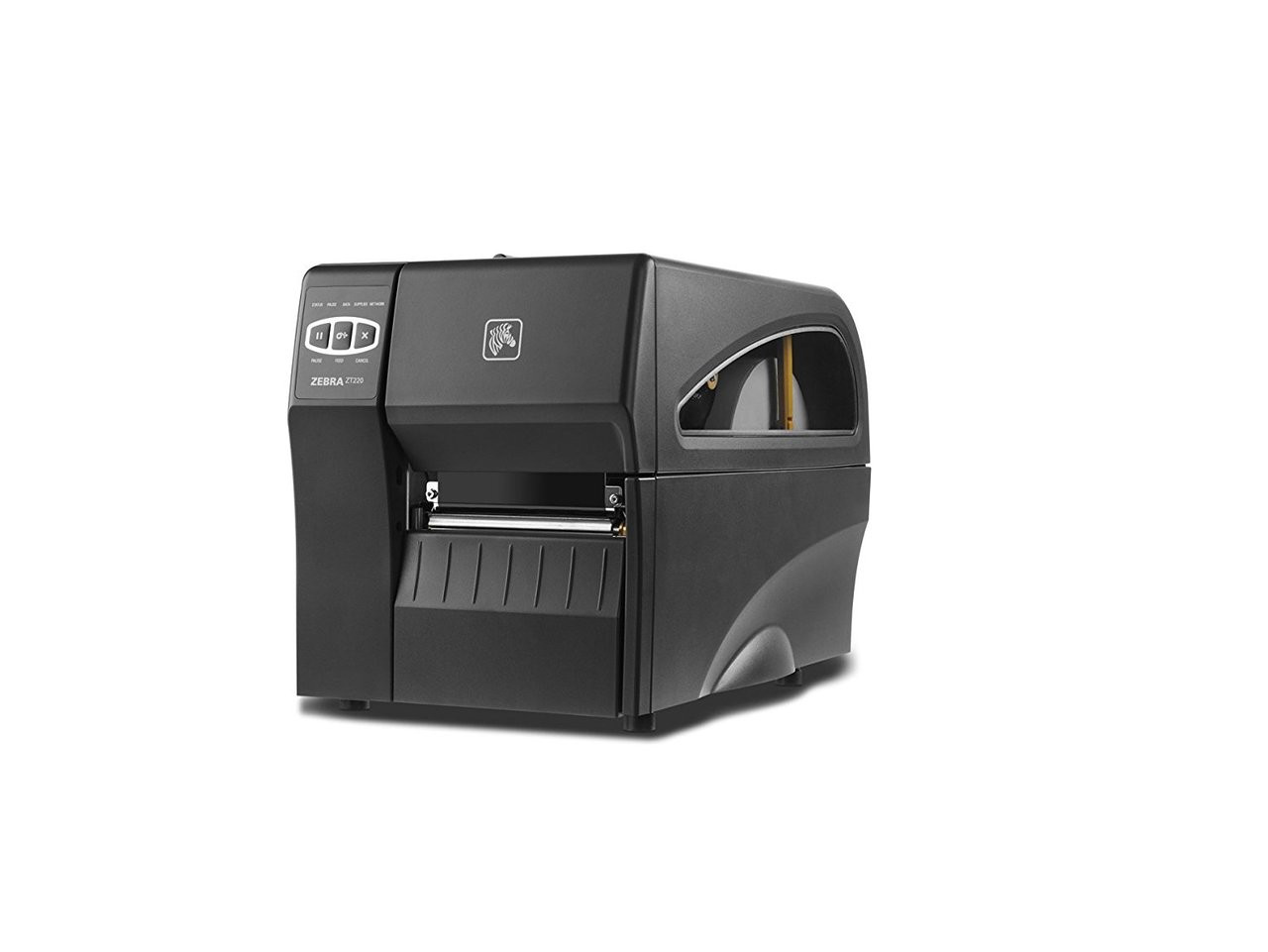

The Zebra ZT220 Industrial Thermal Transfer Tabletop Label Printer with high-impact polymer case prints 4" wide labels at 6" per second and 203 dpi (8 dots/mm). An element energy equalizer (E3) and side-loading metal print mechanism with head open lock help to increase work efficiency. It has a three-button interface to facilitate printing and 128 MB Flash and 128 MB RAM for high throughput. Media sensors are transmissive and reflective to accommodate different label types including continuous, die-cut, notch, and black mark. Multiple connection options include serial and USB 2.0.

Specifications
Dimensions*	10.9 x 9.5 x 17 inches/277 x 242 x 432 mm (H x W x D)
Print width x length	Width: 4.09"/104 mm width, Length: 157"/3,988 mm
Print speed	6"/152 mm per second
Label and liner width	Minimum: 0.75"/19.4 mm, Maximum: 4.50"/114 mm
Maximum non-continuous label length	39"/991 mm
Maximum Media Roll Size	8.0"/203 mm OD on a 3"/76 mm ID core, 6.0"/152 mm OD on a 1"/25 mm ID core
Media thickness	0.003"/0.076 mm to 0.010"/0.25 mm
Ribbon outside diameter	300m = 2.7"/68.6 mm
Standard ribbon length	984'/300 m
Ribbon width	1.57"/40 mm to 4.33"/110 mm
ID Core	1.0"/25.4 mm
Agency approvals	IEC 60950, EN 55022 Class B, EN55024, EN 61000-3-2, EN 61000-3-3

*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Thermal printers can be used to print receipts, labels, tags, and other similarly sized media at point of sale (POS) locations. Direct thermal printers and thermal transfer printers use heat instead of ink to print on coated thermal media. A parallel, serial, or USB port allows a receipt printer to be connected to a computer. An Ethernet port or wireless capabilities may enable it to be connected to a computer network. Thermal printers can be used at retail checkout counters and other points of sale.

Zebra Technologies manufactures barcode, receipt, kiosk, and radio-frequency identification (RFID) printers and accessories. The company, founded in 1969, is headquartered in Lincolnshire, IL.

What's in the Box?

(1) thermal printer
(1) North American power cord
